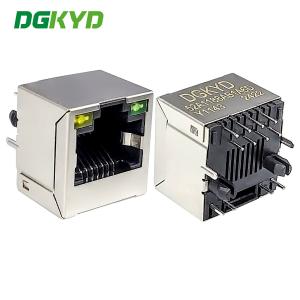

RJ45 8P8C Shielded Strip Light Connector Vertical Mesh Socket Single Port Connector DGKYD52A1188AB1A6DY1143

Brand Name : DGKYD

Model Number : DGKYD52A1188AB1A6DY1143

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 10 days

Packaging Details : Tray in Carton

Application : PCB

Gender : Female

Housing Material : LCP BLACK

Contact Mating Area Plating : GOLD 6u'' / 15u"/ 30u"/ 50u" for optional

Latch : UP

LED Option : Yellow/Green

Number of Ports : single Port

Number of Contacts : 8PIN

PCB Mount Angle : SIDE ENTRY

Contact Now

RJ45 8P8C shielded strip light connector vertical mesh socket single port connector DGKYD52A1188AB1A6DY1143

Product Specification Document
DGKYD52A1188AB1A6DY1143.pdf

Paramters

Part Number
DGKYD52A1188AB1A6DY1143
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
up
Filter
Without Filter
LED Option
With LED
LED Color
Yellow/Green
Panel Stops
With Panel Stops
Shielded
Yes
Applies To 
Printed Circuit Board
Performance Speed
.
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
Single
Number of Positions 
8
Jack Configuration
1 x 1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold G/Fu
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material 
LCP Polyester
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly,100% test, 0 defect, short lead time are our best advantages

Payment Terms:

There are many payment methods available such as Paypal,Escrow,Bank wire,Western Union and Moneygram ect

Return Policy:

If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay addtional shipping fees incurred and items returned should be kept in their original status.

Feedback:

Since your feedback is very important to our busines's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !
