Name: 1Port RJ45 Connector 10P PBT with Filter and Shielding
Brand: DGKYD
Price: 0.60 USD

Model Number : DGKYD111Q066HWA1D

Place of Origin : Guangdong, China

Brand Name : DGKYD

MOQ : 1

Price : $0.60-1.80

Connector Type : RJ45

Shielding : YES

Number of Ports : 1

Contact Finish : 6U/15U/30U

Orientation : Side

Number of Rows : 1

Pins : 10P

Contact Material : Phosphor Bronze

Housing Material : PBT Polyester

Filter : With Filter

Performance Speed : 10/100/1000 BASE-T

Port Configuration : Single

Terminals per Port : 8

PCB Mounting Orientation : Side Entry (Right Angle)

Contact Mating Plating : Gold 6u/15u/30u/50u

Contact Now

Product Description

High-Speed 1x1 Single-Port Gigabit Network Connector Plug10PIN PBT Material Integrated Filtering Shielding Non-Lit for RJ45

Part Number	DGKYD111Q066HWA1D	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	ISO16949/CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Down
Filter	With Filter	LED Option	Without LED
LED Color	N/A	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	10
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

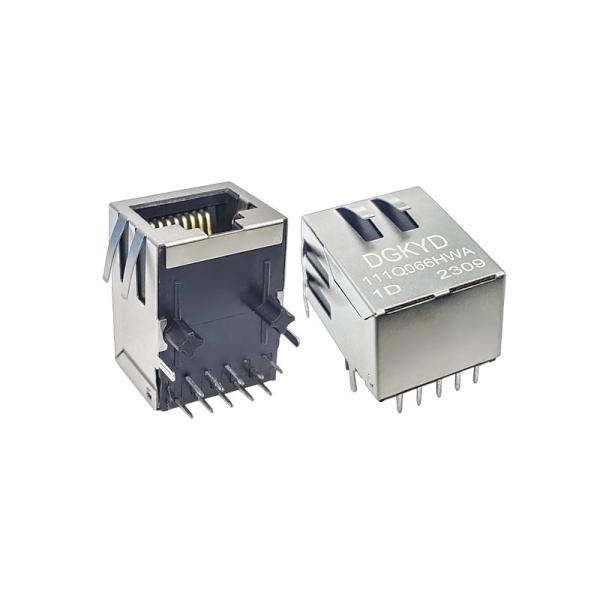

1-port RJ45 connector with filter
