Tap Up RJ45 with Transformer megabit ethernet magnetic connector jack custom

Place of Origin : Dong Guan China

Brand Name : DGKYD

Certification : SGS、ISO9001-2008、ISO14001-2004

MOQ : 1PCS

Packaging Details : 60pieces/tray

Delivery Time : Lead-time 5-10 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 40000pcs per day

Model Number : KRJ-098DBNL

Price : Contact us to get the latest price.

Housing : Phenolic, PBT Black (UL94V-0)

Plastic core : Glass fiber filler PBT Black(UL94V-0),ROHS

Shield RJ45 : yes

No.Port : Single port

Type : RJ45

Product Name : RJ45 with Transformer

Contact Now

Tap Up RJ45 with Transformer megabit ethernet magnetic connector jack custom

  • 10/100Base-Tx RJ45 single port 1X1 with LEDS, Side Entry (Right Angle)
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant
  • Length:25.4mm
  • LEDS:YES
  • EMI finger:NO
  • LEFT LED:Green,RIGHT LED:Yellow

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

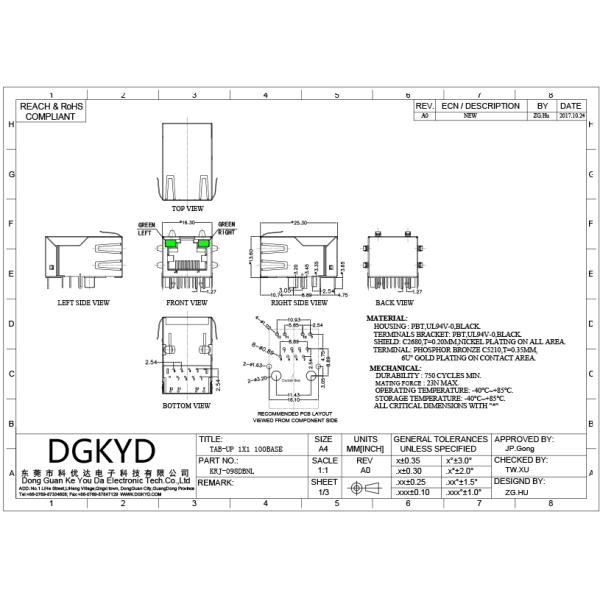

Tap Up RJ45 with Transformer megabit ethernet magnetic connector jack customTap Up RJ45 with Transformer megabit ethernet magnetic connector jack customTap Up RJ45 with Transformer megabit ethernet magnetic connector jack custom

RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed,

gold finger insert and pull life should be 750 times above

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set top box,internet camera,netbridge,computer, telecommunication, MODEM, HomePNA, DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
